Transparent defects inspection dedicated to container requiring the highest level of perfection

Transparent defects camera inspection machine dedicated to perfume and cosmetic containers container requiring the highest level of perfection.

Scroll to discover the new Evolution Ultimate

This equipment meets the requirements of the following business sectors

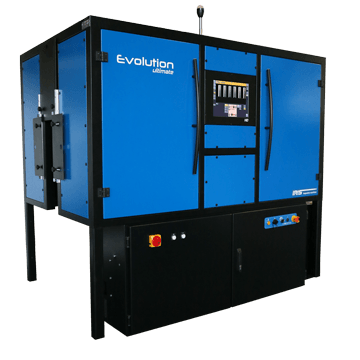

Evolution utlimate : transparent defects inspection

 Hardware features

Hardware features

  • Inspection of asymmetric flacons and complex-shaped articles
  • No need for mechanical orientation
  • Non-contact inspection solution
  • Online inspection
  • Same interface as Evolution 12 & Evolution 5



Ultimate detection for low contrast defects

INSPECTED DEFECTS:

  • Cold moulds
  • Internal blisters
  • External blisters
  • Oil makrs
  • Lap marks
  • Loading and Compression marks
  • Very low contrasted surface blisters
  • Laps and tears
  • Wash boards, cat scratch
  • Moule froid
  • Frisé (frieze)
  • Compression marks
  • Larme (tear)
  • Plis (folds)
  • Orange skin
  • Bouillon de surface (surface bubble)

EXAMPLES OF DEFECTS SEEN ON EVOLUTION ULTIMATE

evolution2

Open blister

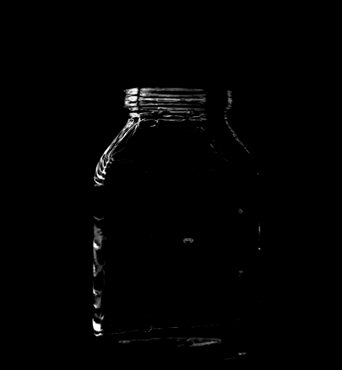

evolution3

Bubble

ultimate1

Orange skin

ultimate4

Scratch

Software Inspection Tools

INNOVATION OF INSPECTION TOOLS

In addition to the conventional inspection tools, the newest inspection algorithms are available in Evolution12 for even better inspection of your articles. Choose the inspection modules fitting your need.

Technical specifications

ELECTRICAL

Power supply : 230V 50/60Hz
Installed Power : < 3,2 kW
Fuse of line : 16 A
Number of Phases :

COMPRESSED AIR

Compressed air: 5 – 6 bar
Type of connection : Air 3/8″
Maximal consumption of air : < 900Nl/min (calculated for a speed of 600bpm with 100% rejection)

WEIGHT

Weight of machine packed : Approx. 800 kg
Weight of machine : Approx. 500 kg

DIMENSIONS

Lenght : 1990 mm
Width : 1300 mm
Height: from 1878 mm to 2078 mm (for a conveyor height between 900 mm and 1100 mm)
Charge on the ground : 1,1 kg / cm2

TELEMAINTENANCE CONNECTION

Access to internet or directly, or using the plant network. The machine has to be seen from outside of the plant using IP address given to IRIS Inspection machines.

INFORMATION SYSTEM

Connection to the production information system via protocol Modbus on Ethernet or on RS232/RS485. The machine can send a reject signal to the production information system, keep record and provide report as real time basis.

NETWORK

Machines can be connected altogether via Ethernet network to compare adjustments, to copy parameters…

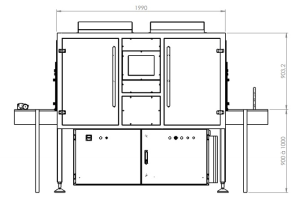

plan ultimate 2
