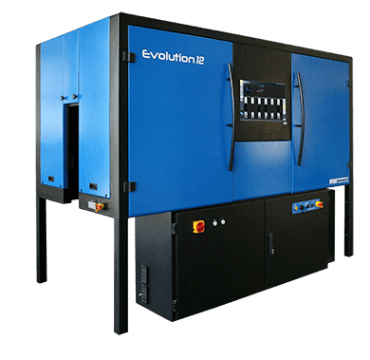

12 Camera Concept
Vertical and horizontal overlapping for full inspection
- The upper cameras analyze the higher part of the bottle. View from above the neck up to the shoulder
- The lower cameras analyses the lower part of the bottle, from the base to the shoulder
- 360° horizontal body coverage
- Vertical overlapping for 100% inspection coverage even for non-round bottles with strong shoulder
- 12 cameras in combination with geometry inspection software allow to inspect geometrical defects of the glass containers
Optical and Hardware features
HORIZONTAL AND VERTICAL OVERLAPPING FOR FULL INSPECTION
- Optical settings are optimized without any manual adjustment
- No mechanical adjustment
- Quick and easy job change & repeatability of inspection
- Flexible design from 12 to 20 cameras
Man Machine Interface

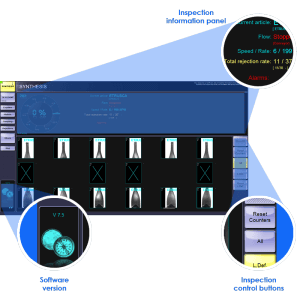

USER FRIENDLY EXPERIENCE
- Inspection machine Software update from remote technical center
- Easy-to-use MMI available in all languages
- Common screens for all Evolution machines
Software Inspection Tools
INNOVATION OF INSPECTION TOOLS
In addition to the conventional inspection tools, the newest inspection algorithms are available in Evolution12 for even better inspection of your articles. Choose the inspection modules fitting your need
Technical specifications
PRACTICAL INFORMATION NECESSARY FOR EVOLUTION 12 INSTALLATION
ELECTRICAL
| Power supply : | 230V 50/60Hz |
| Installed Power : | <3,2 kW |
| Fuse of line : | 16A |
| Number of Phases : |
COMPRESSED AIR
| Compressed Air | 5-6 bar |
| Type of connection : | Air 3/8″ |
| Maximal consumption of air : | < 900Nl/min (calculated for a speed of 600bpm with 100% rejection) |
WEIGHT
| Weight of machine packed : | Approx. 800kg |
| Weight of machine : | Approx. 500 kg |

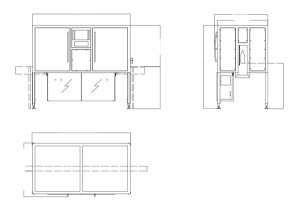

DIMENSIONS
| Lenght : | 2330 mm |
| Width : | 1200 mm |
| Height: | from 1878 mm to 2078 mm (for a conveyor height between 900 mm and 1100 mm) |
| Charge on the ground : | 1,1 kg / cm2 |
TELEMAINTENANCE CONNECTION
| Access to internet or directly, or using the plant network. The machine has to be seen from outside of the plant using IP address given to IRIS Inspection machines. |
INFORMATION SYSTEM
| Connection to the production information system via protocol Modbus on Ethernet or on RS232/RS485. The machine can send a reject signal to the production information system, keep record and provide report as real time basis |
NETWORK
| Machines can be connected altogether via Ethernet network to compare adjustments, to copy parameters,… |
